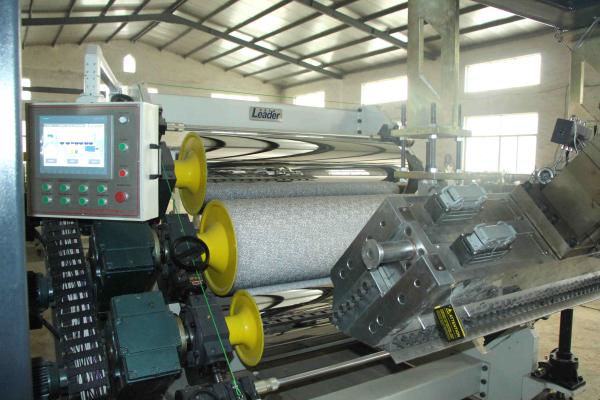

Embossed PC Solid Sheet Extruder Machine
This machine is specially used to produce the polycarbonate universal solid sheets, which is as clear as glass, but the density of PC is only half of glass. And the PC solid sheet is with high impact resistance, which is also called " Unbreakable glass" . By changing the three rollers calendars, this line can also produce frosted solid sheets, diffusion solid sheets, embossed solid sheets and anti-scratch solid sheet etc for different applications.
PART 1 SOLID SHEET SPECIFICATIONS:
1) Thickness: 1.8mm-12mm
2) Width range: <= 2,100mm
3) Length: Any dimension.
4) Color: Clear, blue, green, opal, brown, blue green etc.
PART 2 SOLID SHEET APPLICATIONS:
PC solid sheet is easy to be shaped with cold bending, equipment and heat synthesis processing accordingly, which used widely in all kinds of architecture, engineering and decoration etc.
1) Lighting Roofing
2) Advertisement light box
3) Carport and awnings.
4) Sound barrier
5) Protective & Police device
6) Indoor partition
7) Indoor ceiling etc
PART 3 MAIN TECHNICAL DATA:
| Main extruder model | 120/35 | 130/35 |
| Main driving motor power | 185kw | 250kw |
| Co-extruder model | 45/30 | 45/30 |
| Co-extruder driving motor | 11kw | 11kw |
| Sheet width | 1000-1560mm | 1220-2100mm |
| Sheet thickness | 0.8-8mm | 1.5-10-12mm |
| Max capacity | >400kg/h | >600kg/h |
PART 5 OTHER KINDS OF PLASTIC SHEET EXTRUSION MACHNE RECOMMANDATION:
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.15-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.
5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.
7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
9. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
